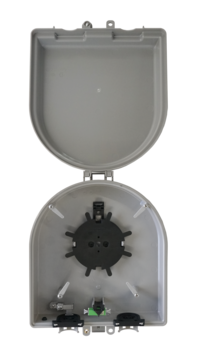

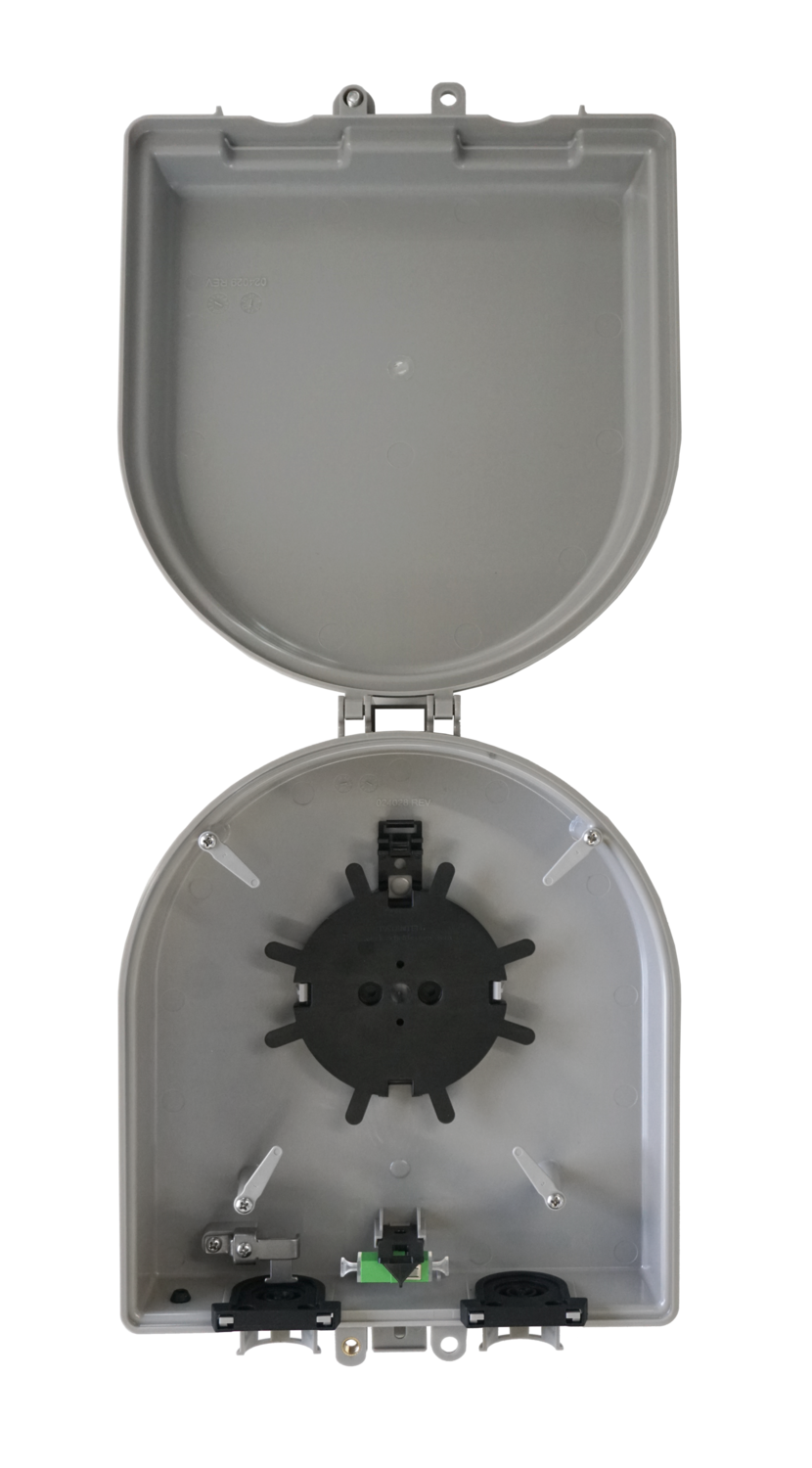

CraftSmart Deploy Reel TAP
Engineered to land FTTH terminations as conveniently as possible, the CraftSmart Deploy Reel TAP is optimized for delivery of FieldShield® FLEXdrop® via a FLEXdrop Deploy Reel. The lockable enclosure is curved, making it ideal for a variety of cable applications, including our small form factor (SFF) drop cable when entering the box. Up to 50 feet of SFF can be easily stored.
Hacer una pregunta
Detalles del producto
The CraftSmart Deploy Reel TAP offers single count fiber deployment in a discreet footprint and without sacrificing proper fiber management. The CraftSmart Deploy Reel TAP is designed to make FTTH more cost-effective and efficient than previously thought possible. Standardizing on a craft-friendly, building block architecture reduces the operating costs of fiber deployments by reducing installation times and inventory carrying requirements.Características y Beneficios
Integrity- UV Stabilized
- Designed specifically to house the FLEXdrop Deploy Reel
- Deploy Reel mounting plate included with box
- Two positions for splice sleeve
- Includes SC/APC adapter
- Ground lug can be ordered separately
- Mounting plate accepts the deploy reel mounting pin
- Box is easy to install with both internal and external mounting holes
- Two bottom entry/exit points utilizing multifunctional gaskets

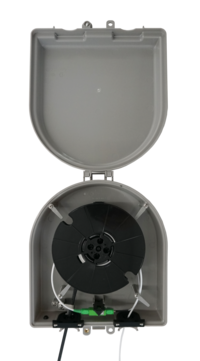

- Holds up to 100 feet of FLEXdrop on Deploy Reel
- Surface- or pole-mount capable
- Flame retardant PVC for durability
Especificaciones técnicas
Dimensions | 11.47” H x 9.28” W x 2.98” D (291.34 mm H x 235.712 mm W x 75.69 mm D) |
Color | Gray |
Material | UV Stabilized, Flame Retardant Polycarbonate |
Adapter Style Receptacle | SC/APC |
Port Count | 1 |
Seals | Rubber Membrane Grommet (2) |
Mounting Options | Wall or Pole Mount |
