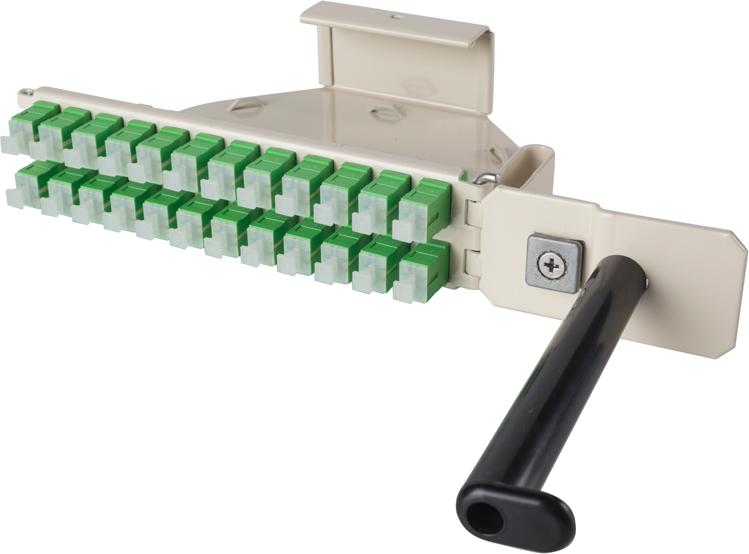

FieldSmart Fiber Crossover High Density (FxHD) Tie Panel
Side View of The FieldSmart Fiber Crossover High Density (FxHD) Tie Panel
Front View of The FieldSmart Fiber Crossover High Density (FxHD) Tie Panel
The FieldSmart Fiber Crossover High Density (FxHD) Tie Panel provides an in the field configured interconnect or cross-connect environment for 12 to 2016 ports of high-density fiber in central office and headend environments.
Ask a Question
BABA Compliant Option Ready for Quote
This product meets BABA compliance standards and is available to quote. For more details, please contact our sales team at (800) 422-2537 or complete the inquiry form here.
Product Details
The FieldSmart FxHD Tie Panel is a high density, low-maintenance fiber distribution system exclusively for the FxHD frame system. Tie panels are intelligently designed to provide the user with superior fiber access while using craft-friendly radius protected fiber management for routing and deploying fiber jumpers or multi-fiber cables, on both sides of the adapter plate for cross-connect environments.
Features & Benefits
Integrity
- Terminations designed, tested and certified to Telcordia GR-326
- Supports all industry standard singlemode and multimode connectors and cabling
Protection
- Ruggedized hinged bulkhead
- Cable clamp protects against twisting and pistoning at the assembly breakout point
Access
- Front access frame system
- Front and rear access via hinged bulkhead
Investment
- Panel sizes available in 24 ports
- “Grow-as-you-go” integration allows the user choices to provide for cost containment as subscriber take-rates dictate
- Industry-leading density, 2,016 ports in a 7’ (2133.60 mm)FxHD frame system
Technical Specifications
| Specification | Description |
|---|---|
| Dimensions | 1.6” H x 6.96” W x 5.39” D (40.64 mm x 176.78 mm x 136.91 mm) |
| Port Density | 24 |
| Connector Types | SC/UPC, SC/APC, LC/UPC, LC/APC, MPO (additional options available upon request) |
| Cable Types | Indoor Riser, Indoor Plenum, Indoor/Outdoor, Outdoor (Riser/Non-Rated), Outdoor Armored (Riser/ Non-Rated), FieldShield® |
| Material | Aluminum with almond powder coating |
