FieldSmart FxDS Optical Component Chassis (OCC)
FieldSmart FxDS Fiber Optical Component Chassis With 2 Wide LGX Attached

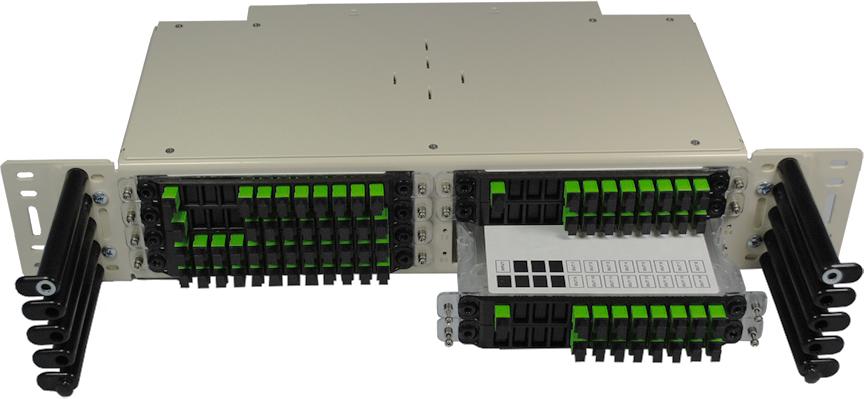

Front View of FieldSmart FxDS Fiber Optical Component Chassis
Front View of FieldSmart FxDS Fiber Optical Component Chassis
The FieldSmart FxDS Optical Component Chassis (OCC) is used for housing optical component modules. The FxDS Optical Component Chassis is available FOR horizontally mounted and LGX vertically mounted modules. These products are needed when optical components are required. They are typically used in CATV headends and telephone company central offices.
Ask a Question
BABA Compliant Option Ready for Quote
This product meets BABA compliance standards and is available to quote. For more details, please contact our sales team at (800) 422-2537 or complete the inquiry form here.
Product Details
An optical component chassis is mounted in a rack and holds optical components modules. Fiber jumper management is provided from the front of the optical component module to the interbay cable management panels. Optical components are splitters or WDM’s that are cassette or metal LGX housing based. Optical components can be housed in the flexible Clearview® Cassette or in one of our four sizes of LGX style modules. The LGX and FieldSmart® modules require an Optical Component Chassis to house the modules in a frame. The 1RU splitter “pizza box” does not require a separate chassis and is available in 19” or 23” (482.60 mm or 584.20 mm)mounting versions.
Features & Benefits
Integrity
- RUS listed
- Compliant to Telcordia GR-449
- Supports all industry standard singlemode and multimode connectors
- May be ordered as a “bulkhead only” application without rear protection
Protection
- Optional ruggedized Lexan front cover
- Optional rear protection module available for additional protection
- Non-removable adapter plates
Access
- Front access to panel
Investment
- Virtually any combination of split ratios and number of components can be achieved in one of the four Clearview Cassette sizes
- An economical, dense and user-friendly solution for deploying splitters or WDM’s in a central office design
- 1RU optical components available for smaller, limited deployments
- Clearfield supports legacy splitter deployments by offering optical components in an LGX footprint
- Horizontal mounting versions of the FieldSmart FxDS OCC are available in five sizes to accommodate any size project
- Available for both 19” or 23” (482.60 mm or 584.20 mm) mounting
- Chassis incorporates the superior fiber management system of the FieldSmart FxDS Panel line
- Allows for a “grow-as-you-go” design to reserve rack space for future growth
Technical Specifications
Dimensions
| Specification | Description |
|---|---|
| Clearview Cassette: 1 High | 0.8” H x 8.75” W x 8” D (20.32 mm x 222.25 mm x 203.20 mm) |
| Clearview Cassette: 2 High | 1.6” H x 8.6” W x 7.06” D (40.64 mm x 218.44 mm x 179.32 mm) |
| Clearview Cassette: 3 High | 2.41” H x 8.6” W x 7.06” D (61.21 mm x 218.44 mm x 179.32 mm) |
| Clearview Cassette: 6 High | 4.84” H x 8.6” W x 7.06” D (122.94 mm x 218.44 mm x 179.32 mm) |
| LGX ½ Wide Module | 0.56” H x 5.12” W x 6.72” D (14.22 mm x 130.05 mm x 170.69 mm) |
| LGX 1 Wide Module | 1.15” H x 5.12” W x 6.25” D (29.21 mm x 130.05 mm x 158.75 mm) |
| LGX 2 Wide Module | 2.27” H x 5.12” W x 6.25” D (57.66 mm x 130.05 mm x 158.75 mm) |
| LGX 4 Wide Module | 4.55” H x 5.12” W x 6.25” D (115.57 mm x 130.05 mm x 158.75 mm) |
| 1RU (19”) | 1.75” H x 19” W x 15.02” D (44.45 mm x 482.60 mm x 381.51 mm) |
| 1RU (23”) | 1.75” H x 23” W x 15.02” D (44.45 mm x 584.20 mm x 381.51 mm) |
| Specification | Description |
|---|---|
| Ratings | Compliant to Telcordia GR-449 |
| Cassette Types Supported | Clearview® Blue, Clearview xPAK |
| Material | Steel and aluminum with almond powder coating |
