Supporting your BABA Compliant Needs.FieldSmart FiberFlex 2000 Cabinet

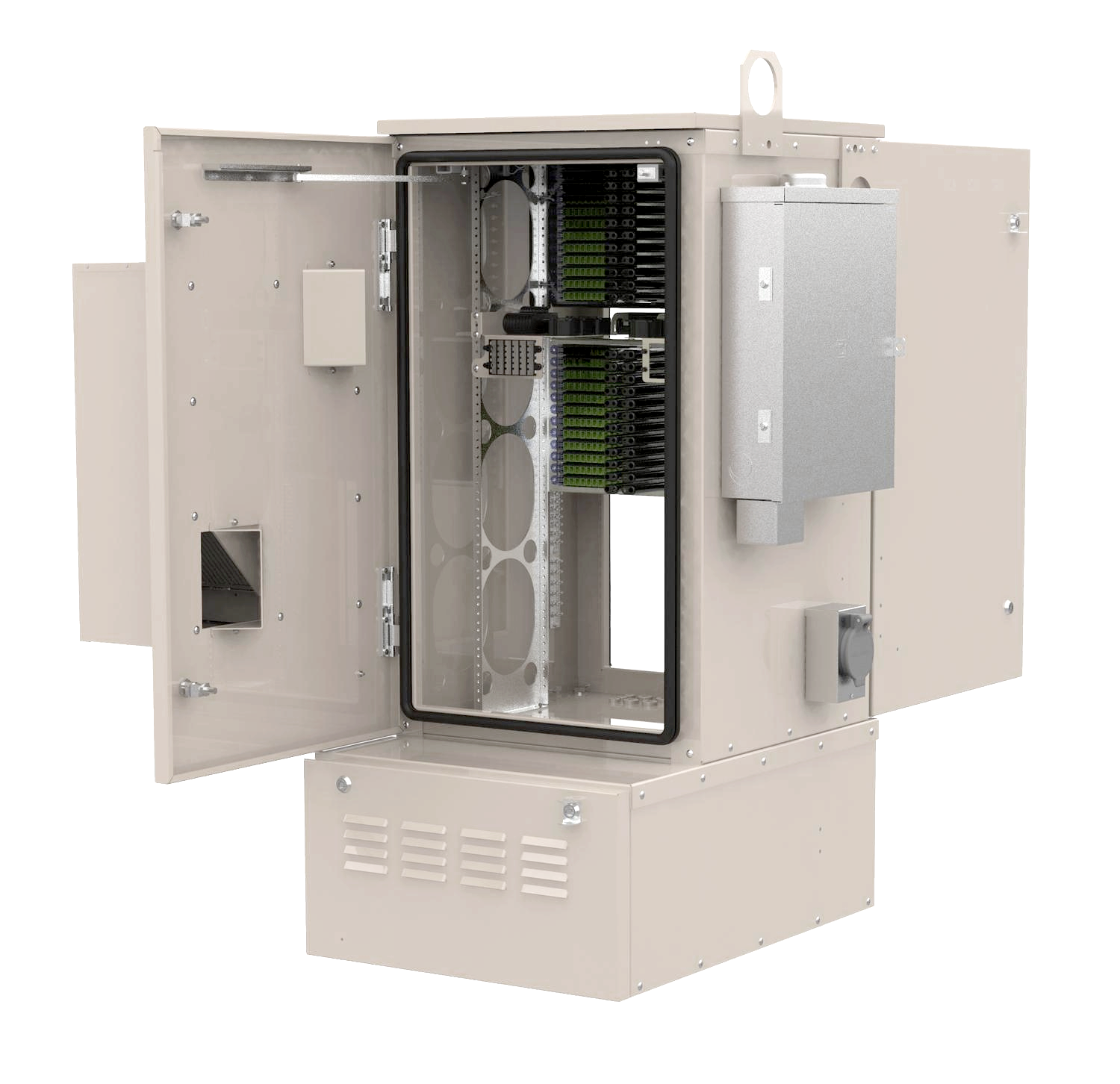

FieldSmart FiberFlex 2000 Cabinet With Door Open
FieldSmart FiberFlex 2000 Cabinet With Door Open
FieldSmart FiberFlex 2000 Cabinet With Door Closed
Clearfield’s FieldSmart FiberFlex 2000 enclosure has been designed from the ground up for maximum flexibility, scalability and space utilization. Optimized for fiber service delivery from 144 to 576 fiber ports utilizing the compact patch only Clearview Black Cassette, the FiberFlex 2000 is a fiber-first design for a variety of powered cabinet deployment scenarios such as the network edge, wireless backhaul and active ethernet networks. The cabinet’s small footprint makes it easy to drop into any application in any location. Designed to comply to GR-487, the FiberFlex 2000 is the ideal outdoor cabinet solution for the harshest outdoor conditions, providing a sealed internal environment where external air and humidity are completely isolated from the electronic equipment.
Ask a Question
BABA Compliant Option Ready for Quote
This product meets BABA compliance standards and is available to quote. For more details, please contact our sales team at (800) 422-2537 or complete the inquiry form here.
Product Details
The FiberFlex 2000 is an environmentally-controlled enclosure constructed of powder-coated aluminum. The FiberFlex 2000’s equipment bay features a 19” vertical equipment rack, accommodating up to 20RU of active electronics equipment. The FiberFlex 2000 provides up to 576 internal fiber distribution ports for subscriber PON deployments, along with complementary splitter capacity. The FiberFlex 2000 accepts local AC power and features an external AC Load Center. A door-mounted, integrated air-to-air heat exchanger and air conditioner provides environmental thermal control for the equipment inside the cabinet. A separate, vented, under-cabinet compartment houses optional batteries. A second battery compartment can be added for additional backup capabilities.
Features & Benefits
Flexibility
- External load center – Simplifies and separates AC connection on site
- Multiple fiber counts – 144 to 576 fiber ports in a single cabinet (Clearview Black Cassette standard)
- Various mounting options – Pad mount and pole mount
- Stackable backup battery bays – Add additional battery compartment to double available backup time
Space Utilization
- Only 54” x 24” x 35” to fit nearly any deployment scenario
- Optimized internal space utilization for maximum equipment capabilities and fiber port count
Integrity
- Designed to comply to GR-487 and NEMA 4 for matchless protection in the harshest environments
- Heat exchanger and air conditioner configurations available
- Factory integration and testing of the AC Load Center, Rectifier, Backup Battery Harness and Heat Exchanger/Air Conditioner
Access
- Provides front and rear doors for full access to internal equipment
- External AC Load Center for easy access and optimal interior space utilization
- Fiber-first design for access storage and routing of fiber cables and accessories, such as splitters and WDMs
- Door security and hardware features designed to protect equipment from vandalism and theft.
- Door integrity alarm standard.
Technical Specifications
| Specification | Description |
|---|---|
| Dimensions |
Base cabinet with Battery Compartment: 54”H x 24”W x 35”D Base Cabinet with 2nd Battery Compartment Option: 66”H x 24”W x 35”D |
| Weight |
Cabinet with Battery Compartment: 250 lbs. Equipped with one 155 Ah battery string: 650 lbs. |
| Mounting Options |
Pour-in-Place Pad Template, FUTURE: Pole Mount |
| AC Power Center Options |
AC Power feed: 240 VAC single phase, 50/60HZ, 125 Amp service with UL listed service panel High power AC surge protection (Joslyn) |
| AC/DC Rectifier Option |
Standard Rectifier: Eltek Flatpack S (FPS) 1RU -48vdc Rectifier System, Two 1000-Watt rectifier modules, autosenses and adjusts for low and high AC input Optional: Eltek Flatpack S (FPS) 2RU -48vdc Rectifier System, Two 1800-Watt rectifier modules, autosenses and adjusts for low and high AC input Smartpack S Controller Note: All Configured Cabinet part numbers include Qty (2) Rectifier Modules |
| Battery Capacity |
Designed to accommodate (2) strings of Northstar NSB 155FT RED batteries. One string support in the standard battery compartment. Dual battery string support using expanded backup option with second battery compartment orders. (Increases capacity to 310Ah total backup). For all other battery types required, compartment space is as follows: 11.2”H x 5”W x 22”D |
| Cooling/Environmental |
Heat Exchanger: 1000-Watt cooling capacity with Dantherm door mount heat exchanger Air Conditioner: 4K BTU Dantherm AC or DC powered Air Conditioner options available Ambient operating temperature range: -40°C to +46°C (-40°F to +115°F) |
| Fiber Management Options |
Up to 576 position fiber distribution in 144 or 288-port increments, SC/APC connector, loose tube or ribbon Up to eighteen integrated splitters in various ratios available Configurable transport module for fiber separation of subscriber and active equipment transport |
| Available Rack Units |
20RU in a standard 19” rack 6RU with full 576 fiber distribution LC or SC ports and rectifier option |
| Safety and Compliance Designed to |
GR-487, UL508a, UL50, and UL50E |
