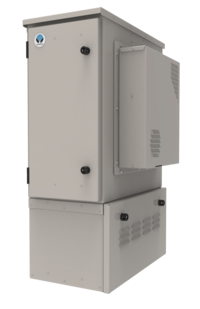

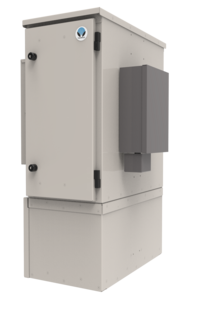

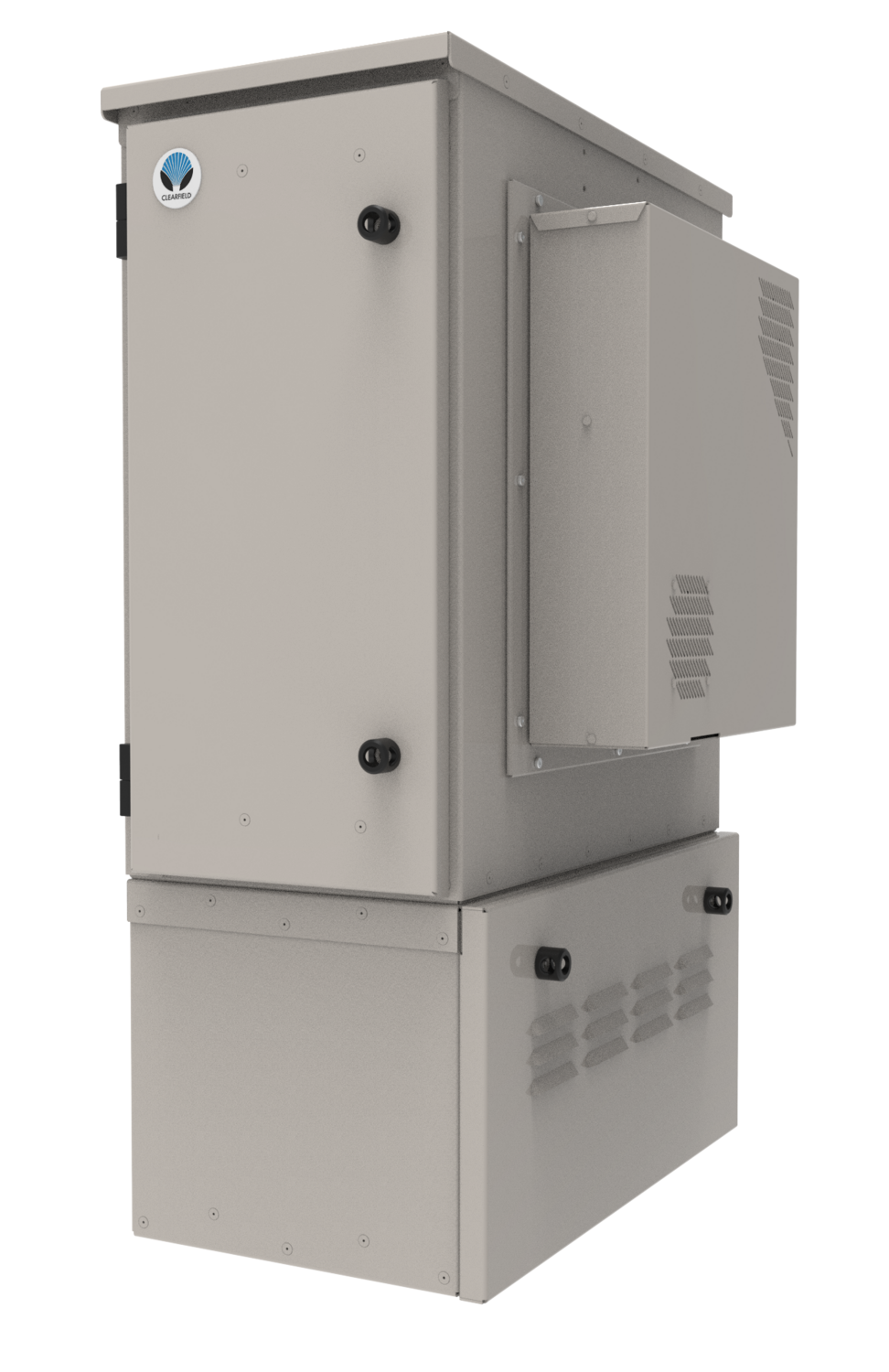

FieldSmart FiberFlex 600
Clearfield’s FieldSmart FiberFlex 600 is a compact, small form factor design optimized for a variety of powered cabinet deployment scenarios. The cabinet is designed to configure for numerous applications including remote OLTs with PON distribution, wireless base stations with fiber backhaul aggregation and active network equipment with back-up power needs, utilizing a flexible layout.
Whether supporting a less densely populated, rural deployment or an urban environment, pairing the FiberFlex 600 with a FieldSmart PON cabinet delivers the power and fiber connectivity to support the exact network requirements.
The cabinet’s reduced footprint allows for a simplified installation with placement into any application with pad or pole mount options. Designed to meet GR-487 requirements, the rightsized FiberFlex 600 is an ideal outdoor cabinet solution for the harshest environments.
Ask a Question
BABA Compliant Option Ready for Quote
This product meets BABA compliance standards and is available to quote. For more details, please contact our sales team at (800) 422-2537 or complete the inquiry form here.
Product Details
The FiberFlex 600 is an all-in-one design, capable of integrating fiber and active equipment powered by AC Power Supply converter or DC rectification. The FiberFlex 600 equipment bay features a 19-inch vertical equipment rack to provide options for up to 6RU of equipment rack space including 2.5RU for active equipment deployment needs.
The FiberFlex 600 provides up to 72 internal fiber distribution ports for subscriber fiber connectivity. This unique design also offers an optional integrated AC Load Center with generator plug for back-up power (pad mount only).
Features & Benefits
Flexibility (Optional Features)
- Cooling options include Heat Exchanger and HVAC (future release)
- AC power system with main breaker, 8-slot load center, and surge protection
- Optional 30 Amp generator plug for long run time back-up power
- Both rectifier and DC power converter solutions are sized to meet application and distribution needs
- Batteries sized to meet power requirements and back-up power time
- Environmental alarm wiring
Space Utilization
- Interior rack is 19-inch EIA standard spacing

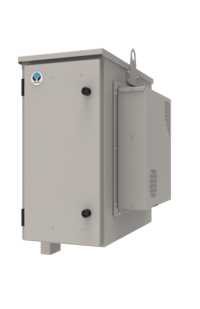

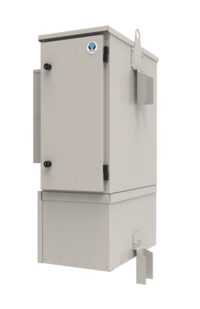

- Mounting options – pad mount or pole mount
Integrity
- Closed-cell door gasket is attached to cabinet frame compliant with NEMA standards
- Stainless steel hardware to prevent corrosion
- Grounding provisions: ground straps for doors and master ground bar mounted in cabinet
- 15 Amp convenience receptacle
- Two lifting eyes on the cabinet to enable ease of installation
- GR-487 compliant powder coating of cabinet
Access
- Fiber-first design for access, storage, routing, and protection of fiber
- Standard is Clearview Blue Cassette (supports patch-only applications)
- Cable entry ports with removable plate to facilitate ease of installation when mounted on concrete pad
- Adjustable door stays from 90-degree to 180-degree openings
- Front and rear door with security padlock hasp with ¼-turn sealing mechanism
Technical Specifications
| Specification | Description |
|---|---|
| Dimensions |
Base Cabinet with Battery Base: 40” H x 14” W x 26” D |
| Weight |
Cabinet with Battery Base: 100 lbs. |
| Mounting Options |
Pour-in-Place Pad Template or Pole Mount 024034 - Assy, pour in place template, FF600 |
| AC Power Center Options |
AC Power feed: 240 VAC single phase, 50/60Hz, 30 Amp service with UL listed service panel. Optional 30 Amp generator connection. High power AC surge protection |
| AC/DC Rectifier Option |
Configurable Rectifier Option: 1RU ABB SPS Slimline Series w/ (10) GMT, (2) Batt. Brkr, (Up to 2) 1000W Rectifier Modules (Configured part numbers include two modules) Configurable Power Supply Option: 1RU 600W Power Supply w/ (10) GMT |
| Battery Options | 140-00039 - Battery string kit (ENERSYS) 4 x SBS B14 62AH - front access |
| Battery Capacity |
Battery base option designed to accommodate single 60 Amp-hour front terminal batteries with optional secondary battery base solution only in pad mount configuration. |
| Cooling/Environmental |
Configurable Heat Exchanger: 600W (17W/F) Heat Exchanger (HEX) Configurable Air-Conditioner: 2000 BTU, DC Powered Air Conditioner with Heat (Future Release) |
| Wired Fiber Capacity |
Up to 72 Distribution; Standard cassette is Clearview Blue for patch only |
| Available Rack Units |
6RU available depending on configuration selected; 2.5RU dedicated for active equipment |
| Safety and Compliance |
Designed to meet GR-487, pending UL508a and UL50 |
